Centre pivot plate
Picture of Centre pivot plate
Picture of Centre pivot plate
Picture of Centre pivot plate
Picture of Centre pivot plate
Heyn

Centre pivot plate

brass cast part
SKU 9313
73,00 € incl tax
incl. VAT (19%) plus shipping
Add to cart
Questions?
Email a friend
  • DescriptionFür diejenigen, die schon Untergestelle haben oder diese selbst bauen wollen: Hier bekommen Sie die Messingteile, um den Drehschemel funktionsgerecht aufbauen zu können. Der Drehschemel ist 100 mm breit; die Bohrungen für die Rungen liegen 90 mm auseinander. Die Höhe der Rungen beträgt...
Close

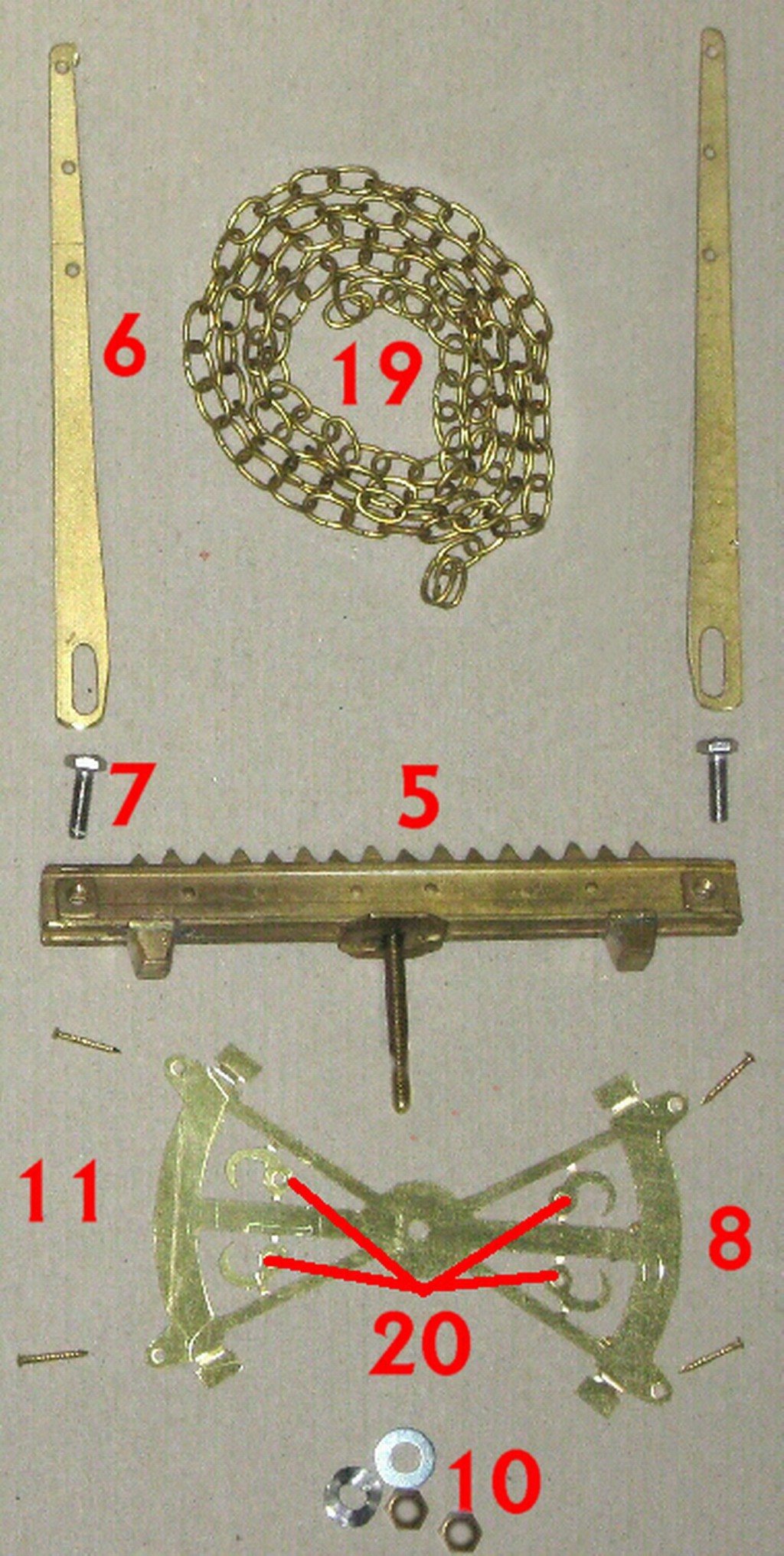

Für diejenigen, die schon Untergestelle haben oder diese selbst bauen wollen:
Hier bekommen Sie die Messingteile, um den Drehschemel funktionsgerecht aufbauen zu können.
Der Drehschemel ist 100 mm breit; die Bohrungen für die Rungen liegen 90 mm auseinander. Die Höhe der Rungen beträgt ca. 95 mm. Wenn Sie die Drehschemel für 1:22,5 benutzen möchten, können Sie die Rungen kürzen. Dafür haben diese am oberen Ende mehrere Bohrungen.
Im Maßstab 1:13,3 ergeben sich so kleinere Rungenwagen auf Lorengestellbasis; im Maßstab 1:22,5 dienen die Wagen dann eher dem Transport von Großstämmen.
Dokumente
  •  09313-drehschemel-set.pdf
