  1. Jigstones
Arch units in stone pattern
Picture of Arch units in stone pattern
Picture of Arch units in stone pattern
Picture of Arch units in stone pattern
Picture of Arch units in stone pattern
Picture of Arch units in stone pattern
Picture of Arch units in stone pattern
Picture of Arch units in stone pattern
Picture of Arch units in stone pattern
Picture of Arch units in stone pattern
Picture of Arch units in stone pattern
Picture of Arch units in stone pattern
Picture of Arch units in stone pattern
Heyn

Arch units in stone pattern

diameter 18 mm, height 10 mm
SKU 40116
26,00 € incl tax
incl. VAT (19%) plus shipping
Add to cart
Questions?
Email a friend
  • DescriptionDie fünf Komponenten aus dieser Form SM4 werden zuerst gegossen. Ein Guss ergibt einen kompletten Bogen, bestehend aus einer linken und einer rechten Sektion sowie einem "Schlüsselstein". Der Bogen hat eine lichte Weite von 154 mm und eine lichte Höhe von 47 mm. Nach dem Abbinden werden die B...
Close

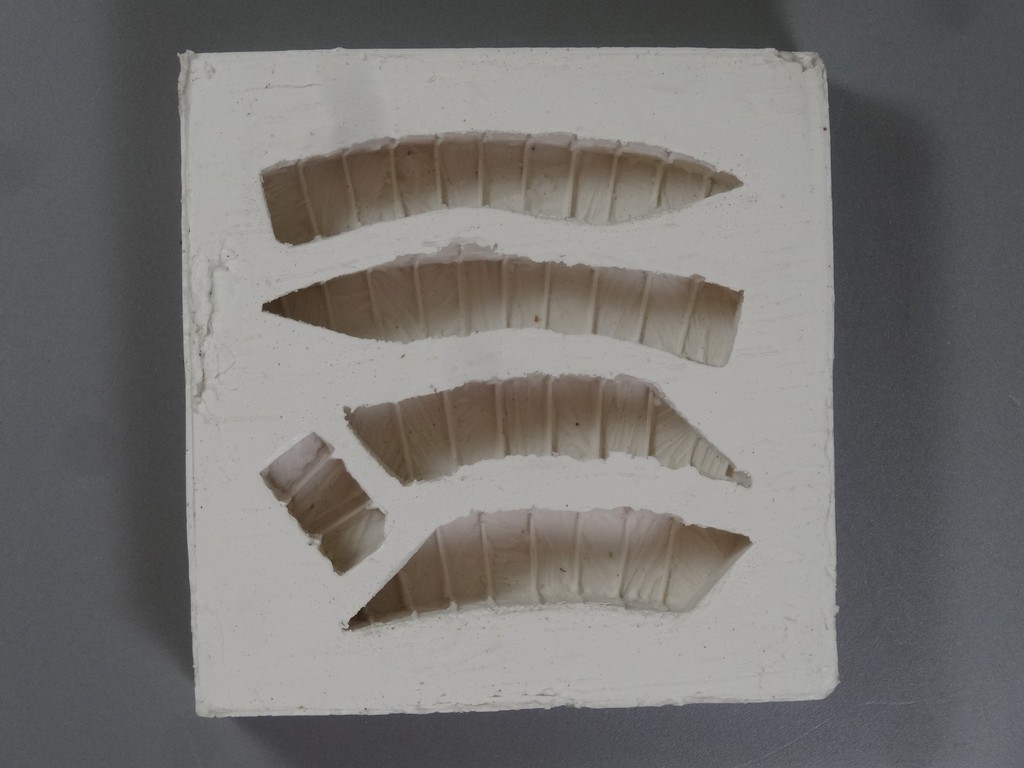

Die fünf Komponenten aus dieser Form SM4 werden zuerst gegossen. Ein Guss ergibt einen kompletten Bogen, bestehend aus einer linken und einer rechten Sektion sowie einem "Schlüsselstein".

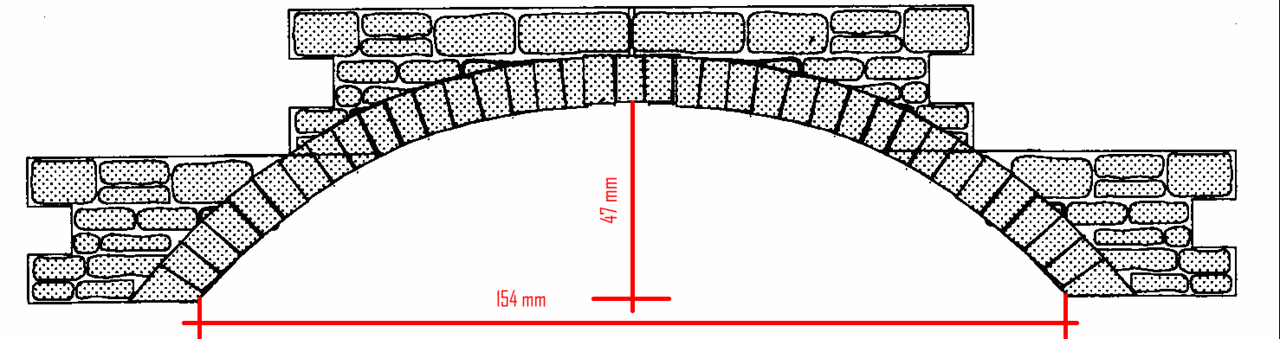

Der Bogen hat eine lichte Weite von 154 mm und eine lichte Höhe von 47 mm.

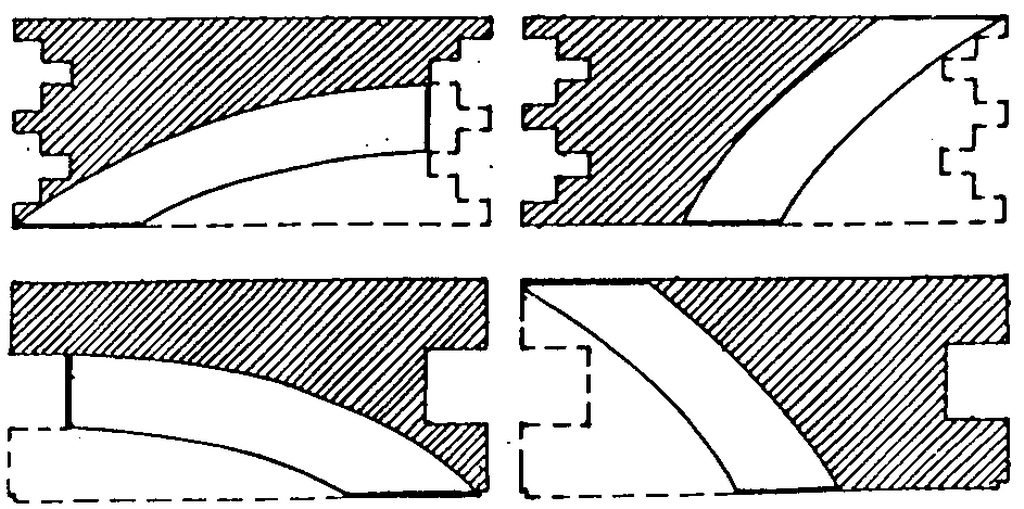

Nach dem Abbinden werden die Bogenteile entformt. Aus dem Formset für Wände wird die Form für Stein Nr. 1 (der größte des Sets) bereitgelegt. Die gegossenen Bogenteile werden nun umgedreht in diese Form vorsichtig eingelegt (siehe Zeichnung) und der verbleibende Raum mit Beton aufgefüllt. Wenn die Form "Quadersteine" verwendet wird, sollte darauf geachtet werden, dass sich die schmale "Mörtelfuge" der Form auf der unteren Seite befindet. Anschließend wird der obere freie Teil der Form mit Beton ausgefüllt, während der untere Teil des Bogens frei bleibt. Die schraffierten Flächen auf der Skizze zeigen den Bereich, der ausgegossen wird. Verdichten Sie das Material vorsichtig, damit der Beton nicht unter das Bogenteil fließt. Nun muss abgewartet werden, bis der Guss abgebunden hat.

Zusammenbau

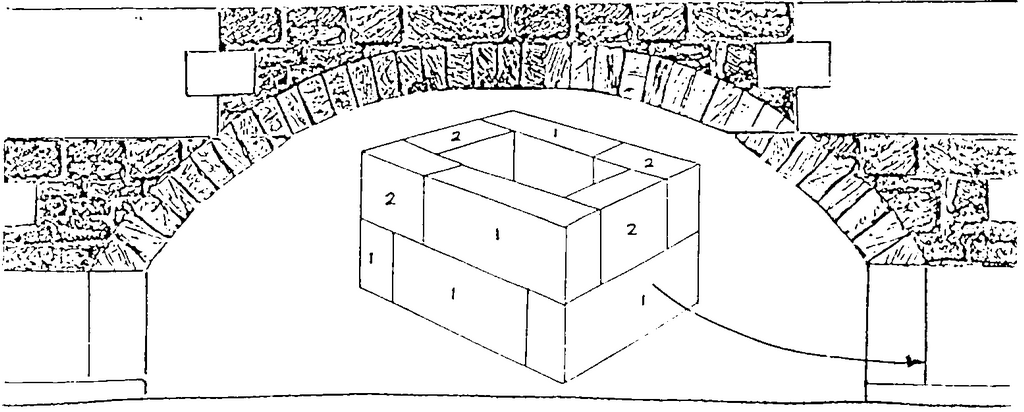

Aus der Zeichnung ist zu entnehmen, wie die neuen Komponenten, bestehend aus dem Bogenteil und Stein Nr. 1, zusammengesetzt werden. Zuerst werden jedoch die beiden Pfeiler gebaut, auf denen dann die beiden unteren Bogenelemente aufgebaut werden. Nach dem Abbinden wird der Hohlraum der Pfeiler mit Beton aufgefüllt

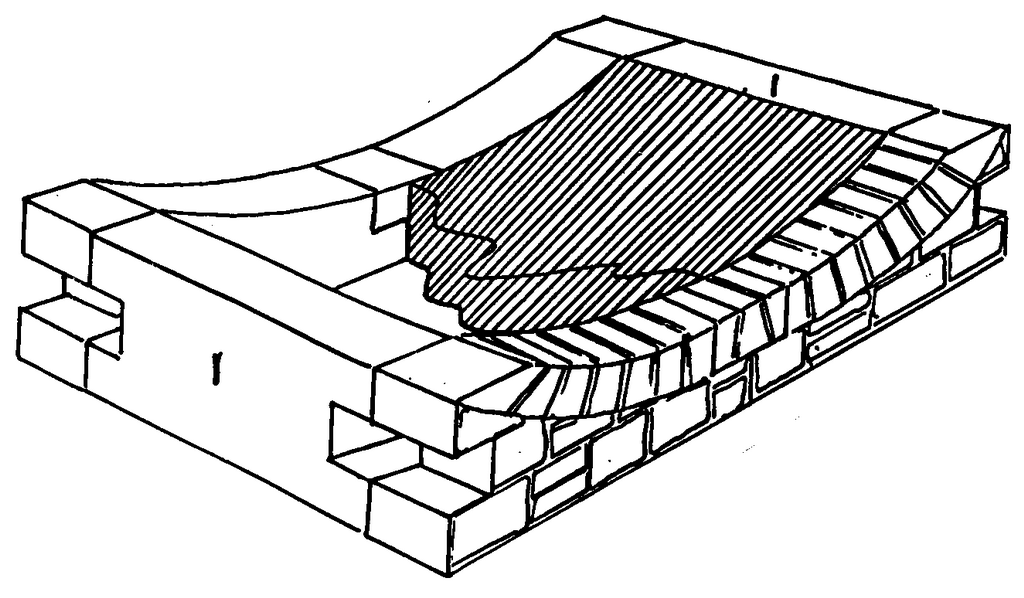

Das Mittelstück wird als separates Bauteil zusammengesetzt. Dies sollte auf einem mit Kunststoff-Folie bezogenem Brett vorgenommen werden. Je ein Stein Nr. 1 wird an jedem Ende quer angebracht und der nun entstandene Hohlraum zwischen den beiden Bogen mit Beton ausgefüllt. Die Füllung wird z.B. mit einem Spachtel parallel zu den Brückenbögen geformt. Nach dem Abbinden wird das Mittelstück auf die Pfeiler aufgesetzt und angepasst. Nach dem Verkleben wird der entstandene Hohlraum ebenfalls mit Beton aufgefüllt und glatt gestrichen, damit zusammen mit dem Mittelstück eine ebene Fläche

Mit den verschiedenen Ausführungen der Formsets ergeben sich sehr viele Variationsmöglichkeiten, wobei man sich natürlich auch auf nur ein Formset (z.B. Quadersteine) beschränken kann. Die Spannweite eines Bogens beträgt ca. 190 mm, sodass ausreichend Platz für eine eingleisige Strecke der Spur G ist. Die Pfeilerhöhe kann den jeweiligen Erfordernissen angepasst werden.

Dokumente
  •  40116-bruecken--und-bogen-sm-4.pdf
